T-Bar Light Mount

T-Bar Light Mount

Regular price $35.00 USD
Regular price Sale price $35.00 USD
Sale Sold out

50 in stock

Hang a headlight under your bag!

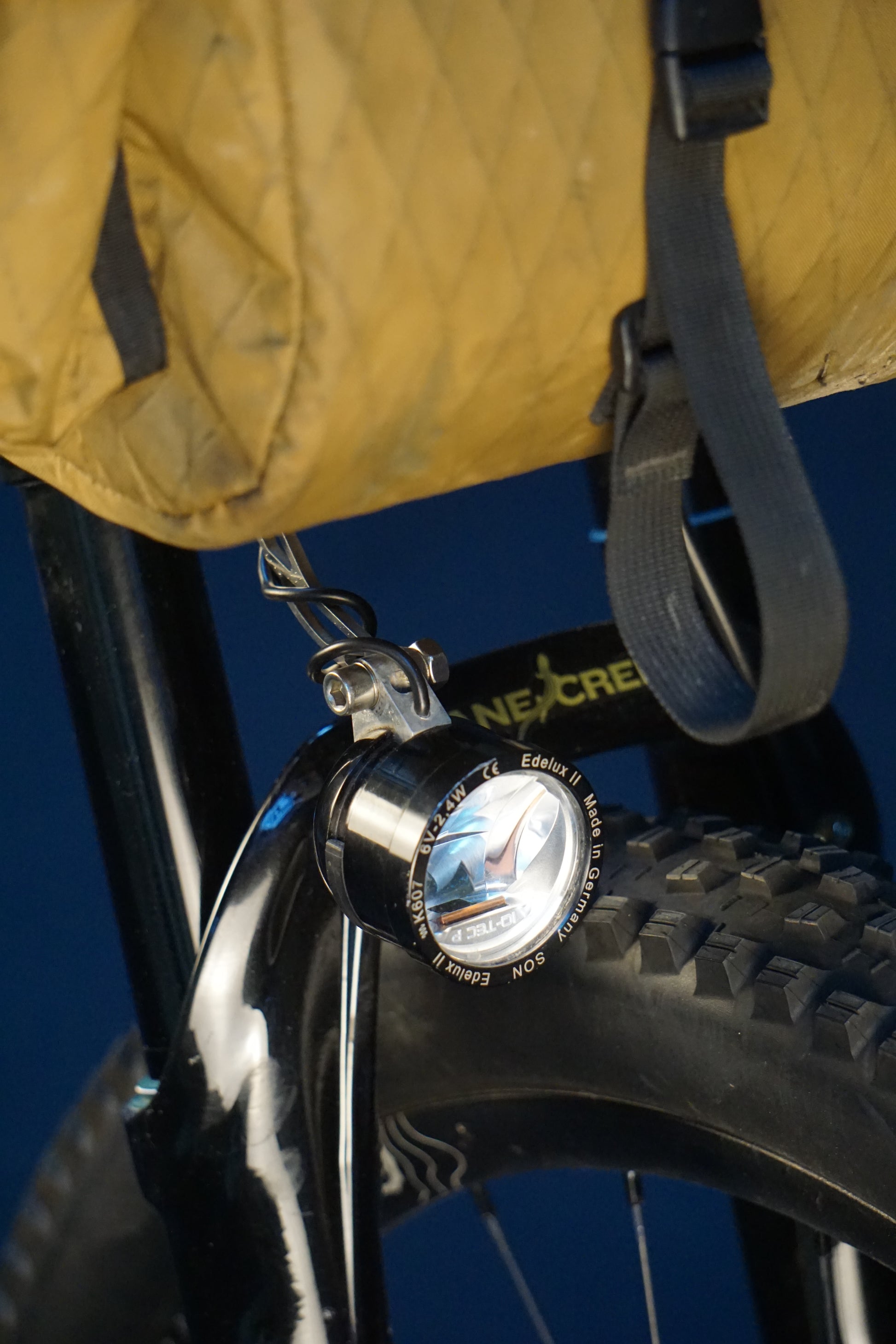

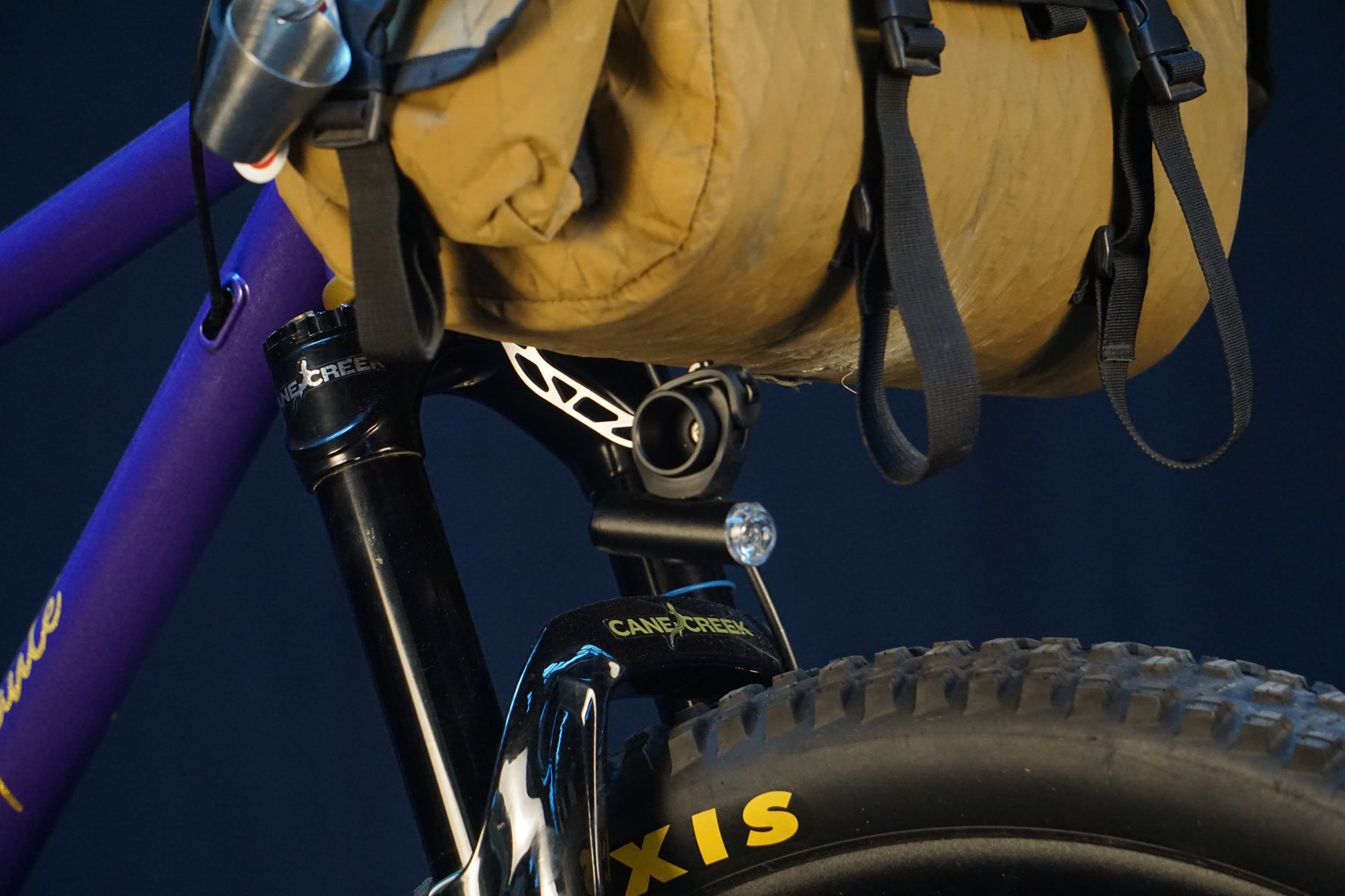

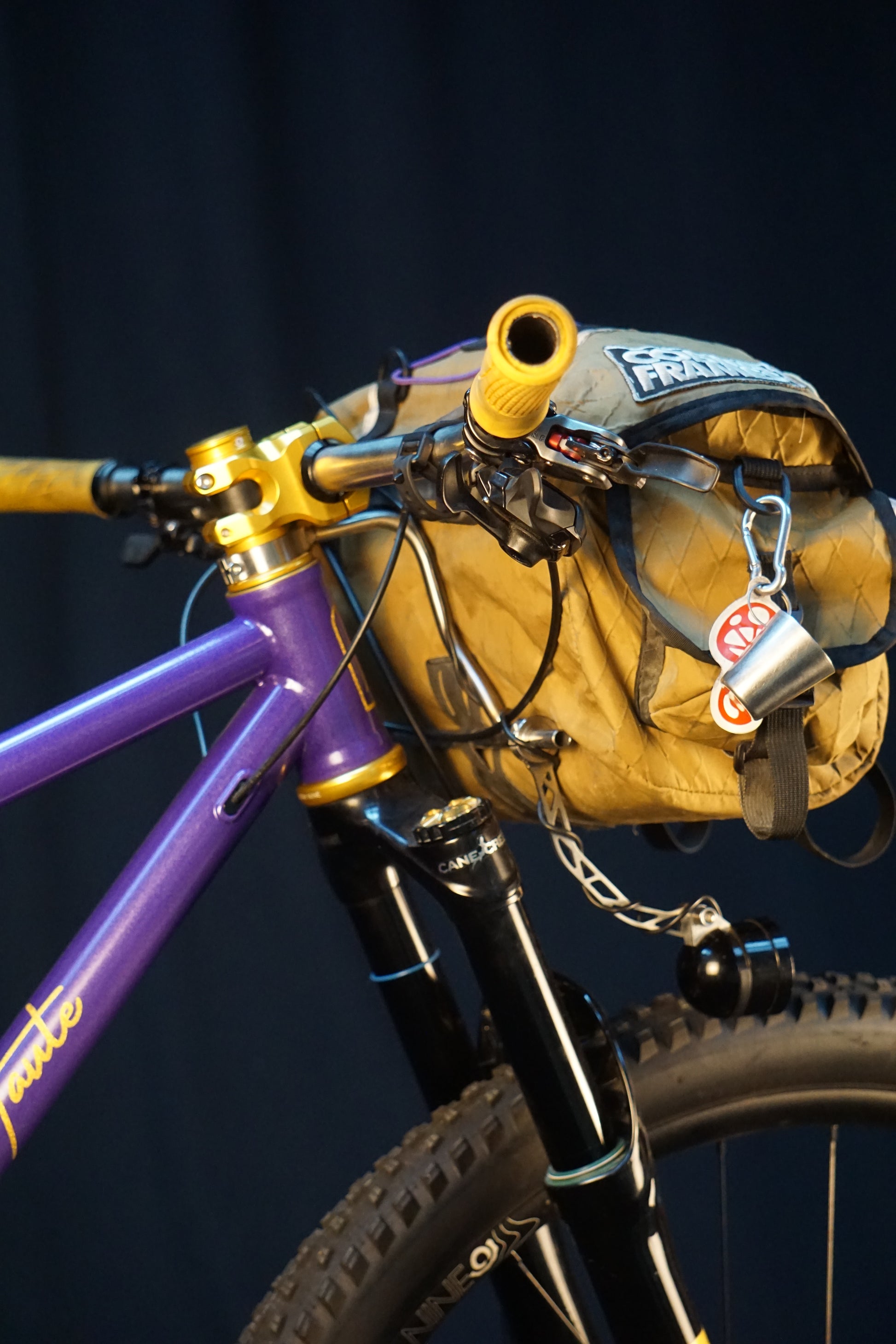

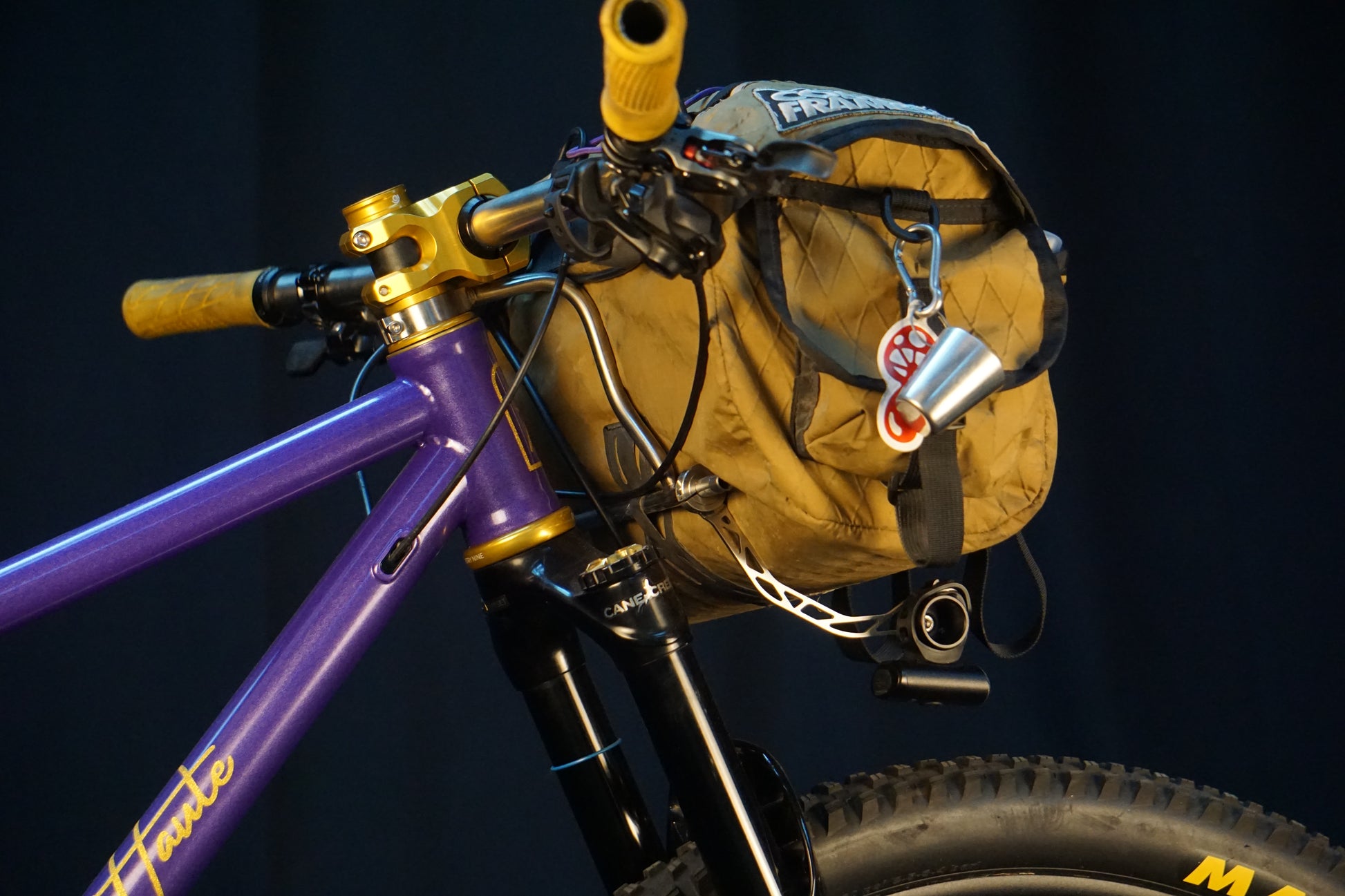

The T-bar Light Mount wraps under your well-supported front bag to put a light under and in front of your luggage. It clamps on to any new or old T-bar, or any rack tube that's 10mm or 3/8" in diameter.

There are two threaded holes on the end of the light mount. One is for an M6-1.0 Bolt used by most Dynamo headlights. The other is for an M5-0.8 bolt, frequently used with a handlebar adapter like the Paul Gino. You can also attach any "go-pro style" mounts with a few washers and a longer M5 bolt.

The truss structure keeps weight down and strength high, while also adding a convenient place to tie up wires running to your dynamo or battery pack.

The Light Mount is raw tig-welded 304 stainless steel.

View full details

Collapsible content

Geometry and Sizing

For the "reach" of the T-Bar, from the center of the steer tube to the front edge of the T-Bar where it bends down toward the crossbar is 105mm for the large, 84mm for the medium, and 63mm for the small, +/- 1 or 2mm.

For "drop" all sizes position the crossbar roughly 130mm from the middle of the clamp to the bottom of the crossbar, though this varies a bit based on head tube angle. Generally speaking this results in a 140-160mm "Bar-to-Bar" measurement, from where your bag attaches to the handlebar and the crossbar the T-Bar.

This distance is ideal for most medium-large front bags, though some larger bags like the Fab's Chest benefit from an extra steer tube spacer between the bottom of your stem and the top of the T-Bar clamp.
