Twisted T-Bar
Twisted T-Bar
Couldn't load pickup availability
New Orders Shipping February 14th!
New for 2025, a raw stainless finish.

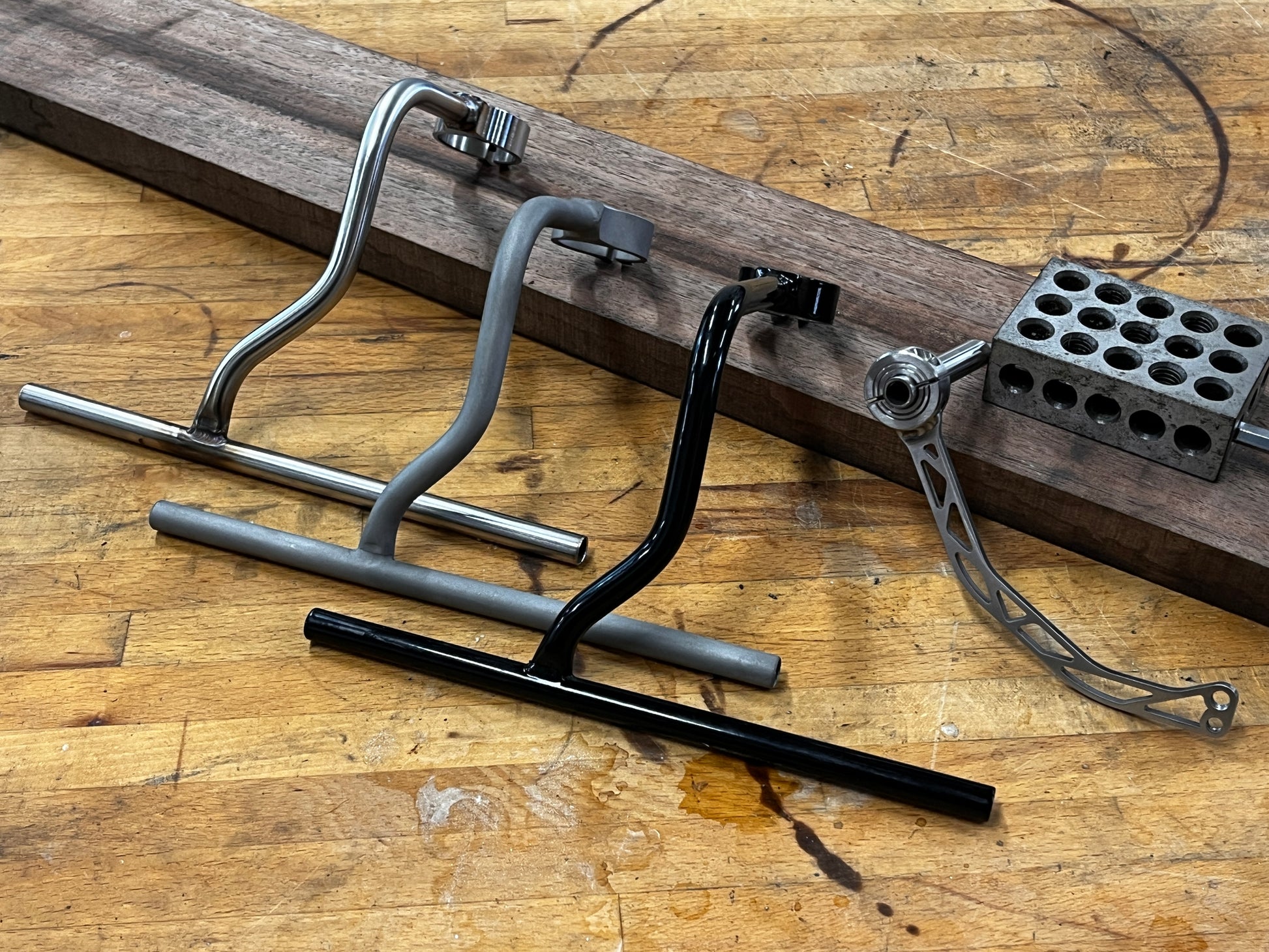

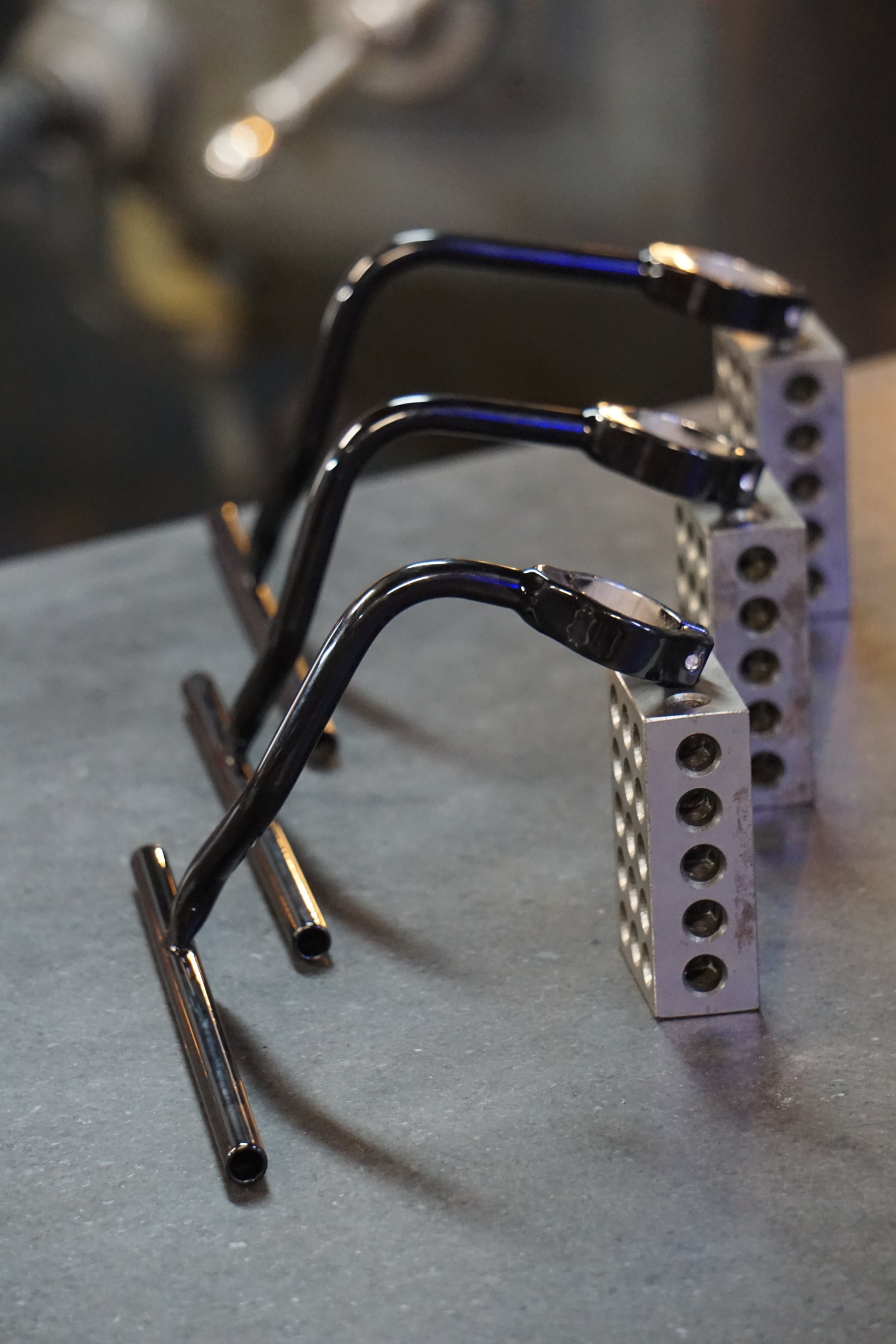

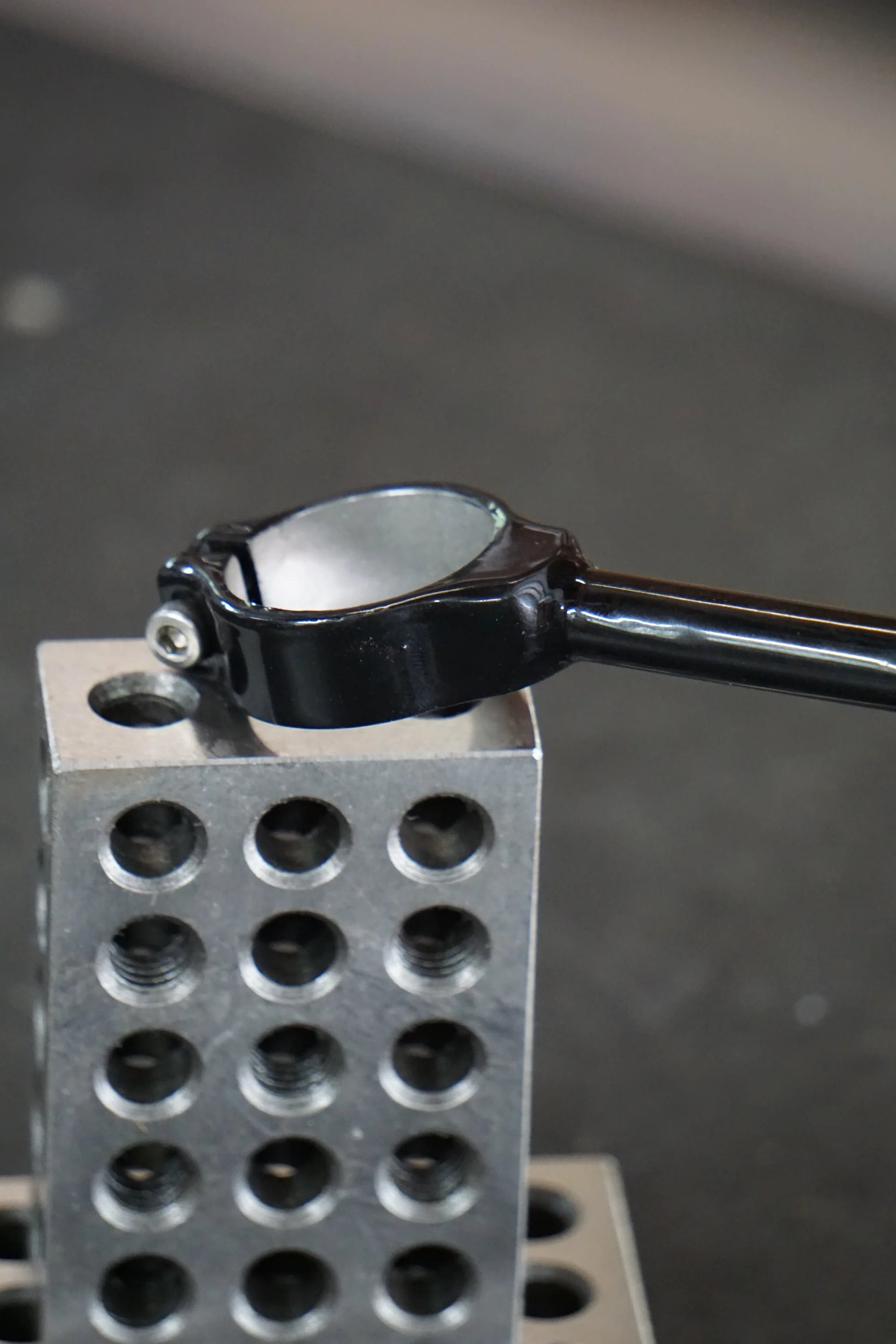

Each T-Bar is handmade in Richmond, Va. They are constructed from 3/8"x.049" stainless steel tubing tig welded to a machined stainless steel clamp. Lightweight and corrosion resistant, they are available in Raw Brushed, Matte Blasted, and Powder Coat Black.
NEW for 2025, we're making our machined clamps in house, with the help of our partner Drixley Machine Works. More options coming soon!
Its basically a push-up bra for your handlebar bag...

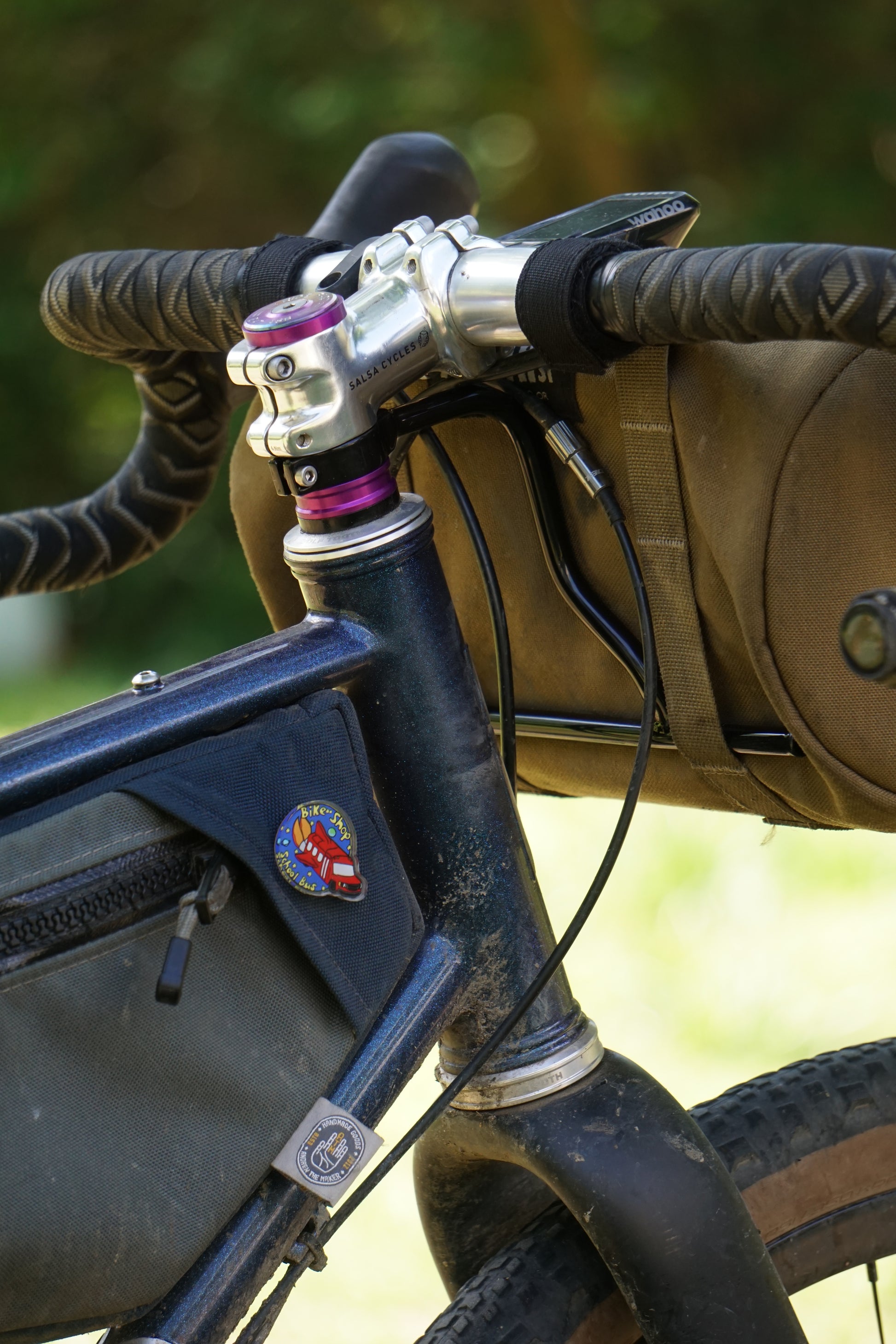

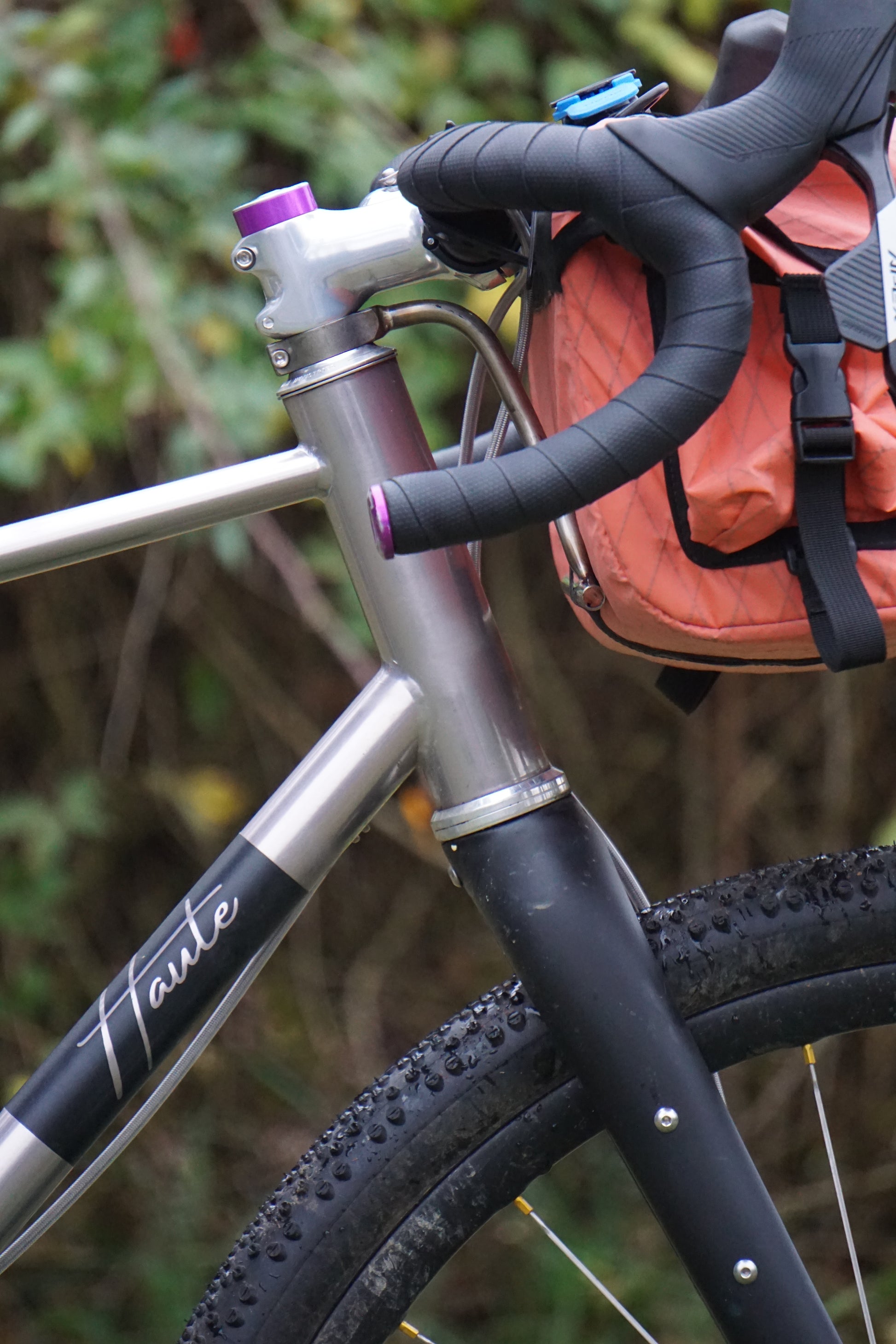

Taking the place of a 1/2" spacer directly underneath the stem on any 1 1/8" steerer, it supports your handlebar bag, providing extra strength and rigidity to avoid flop when riding rough trail with all the goodies in your bag. The T-Bar saves your bag and frame from paint scuffs and tears; and relieves pressure on the brake/shift cables that can make any bag setup a drag. Clean up your cockpit and support your goods with a T-Bar!
Sizing is based around stem length, with some other considerations.
Generally:
Small: 30-50mm stems
Medium: 60-80mm stems
Large: 90-110mm stems
Check out this original write up in Bikepacking.com from 2021
New Extended review of the 2.0 from Nic Morales in Bikepacking.com
Collapsible content
Geometry and Sizing
For the "reach" of the T-Bar, from the center of the steer tube to the front edge of the T-Bar where it bends down toward the crossbar is 105mm for the large, 84mm for the medium, and 63mm for the small, +/- 1 or 2mm.
For "drop" all sizes position the crossbar roughly 130mm from the middle of the clamp to the bottom of the crossbar, though this varies a bit based on head tube angle. Generally speaking this results in a 140-160mm "Bar-to-Bar" measurement, from where your bag attaches to the handlebar and the crossbar the T-Bar.
This distance is ideal for most medium-large front bags, though some larger bags like the Fab's Chest benefit from an extra steer tube spacer between the bottom of your stem and the top of the T-Bar clamp.
